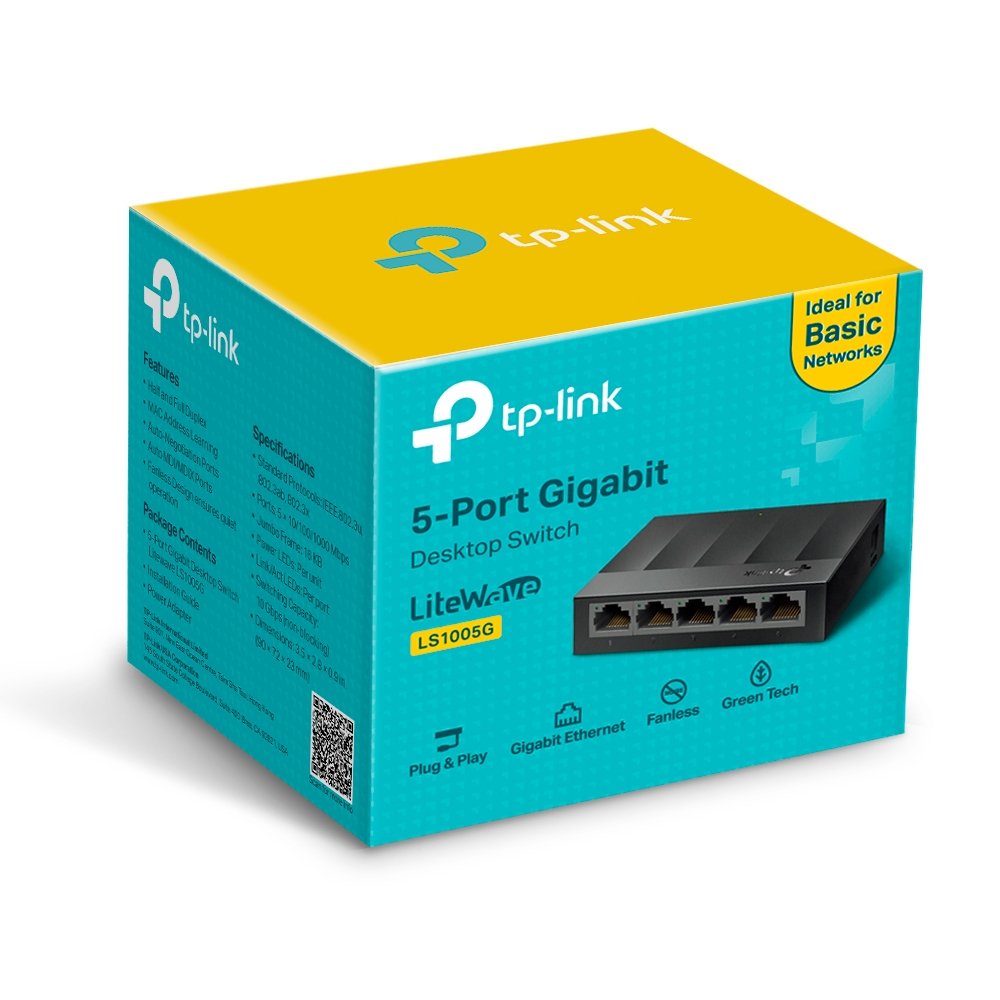

The TP-Link LiteWave LS1005G is a five port unmanaged desktop network switch designed to provide high speed wired connectivity with 10/100/1000 Mbps auto negotiation across all RJ45 ports. It enables fast data transfer between connected devices such as computers, printers, and media systems, supporting full gigabit throughput with Auto MDI MDIX functionality for simplified cabling.
The device operates as part of a plug and play networking solution with no configuration required and is intended for small office, home, and light commercial deployments. It integrates into existing wired networks to expand connectivity capacity while remaining unmanaged, requiring no central controller or software based configuration, and is suitable for desktop or wall mounted installation environments.
FEATURES
Gigabit Switching Architecture and Port Performance
- 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed
- Fanless design ensures quiet operation
Gigabit Switching Architecture and Port Performance
The switch provides five Gigabit Ethernet ports supporting 10/100/1000 Mbps auto negotiation with full duplex capability, enabling high speed wired connections for bandwidth intensive applications. It delivers a switching capacity of 10 Gbps with a packet forwarding rate of 7.4 Mpps, ensuring non blocking data transmission across all ports. Support for IEEE 802.3x flow control enhances frame handling stability during network congestion, maintaining consistent throughput for connected devices.
Plug and Play Network Expansion
The device is designed for immediate deployment without configuration, allowing users to expand wired network capacity simply by connecting power and Ethernet cables. Auto MDI MDIX support removes the requirement for crossover cables, enabling direct connection to routers, computers, IPTV devices, and printers. This unmanaged architecture ensures compatibility across heterogeneous network environments without administrative overhead.
The device is designed for immediate deployment without configuration, allowing users to expand wired network capacity simply by connecting power and Ethernet cables. Auto MDI MDIX support removes the requirement for crossover cables, enabling direct connection to routers, computers, IPTV devices, and printers. This unmanaged architecture ensures compatibility across heterogeneous network environments without administrative overhead.
Energy Efficient Ethernet Technology
Green Ethernet functionality automatically adjusts power consumption based on link status and cable length, reducing energy usage during periods of low traffic or inactive ports. This dynamic power management approach supports reduced operational costs while maintaining full network performance when demand increases, aligning with efficient small scale infrastructure deployment.
Green Ethernet functionality automatically adjusts power consumption based on link status and cable length, reducing energy usage during periods of low traffic or inactive ports. This dynamic power management approach supports reduced operational costs while maintaining full network performance when demand increases, aligning with efficient small scale infrastructure deployment.
Fanless and Compact Hardware Design
The switch features a fanless thermal design that ensures silent operation, making it suitable for noise sensitive environments such as offices and residential spaces. Its compact plastic enclosure supports both desktop placement and wall mounting, enabling flexible installation in constrained spaces while maintaining stable thermal performance under standard operating conditions.
The switch features a fanless thermal design that ensures silent operation, making it suitable for noise sensitive environments such as offices and residential spaces. Its compact plastic enclosure supports both desktop placement and wall mounting, enabling flexible installation in constrained spaces while maintaining stable thermal performance under standard operating conditions.
