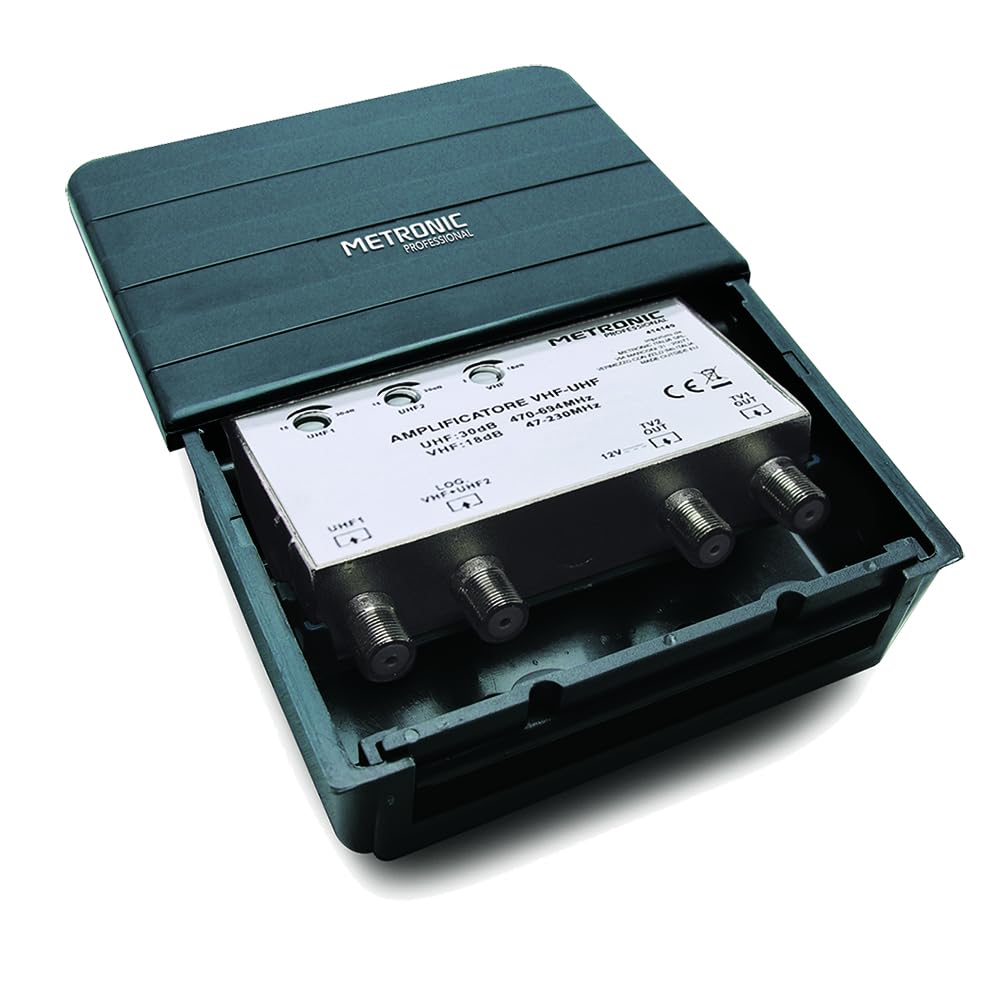

UHF / VHF Masthead Amplifier – 2 Inputs / 2 Outputs (1 Output 12V Pass)
✅ Product Overview
High-quality UHF / VHF masthead amplifier designed to improve weak TV or FM radio signals.
Ideal for combining and amplifying signals from multiple aerials — perfect for rural or fringe reception areas.
⚙️ Technical Specifications
-
Inputs: 2 (UHF + UHF or UHF + VHF)
-
Outputs: 2 × TV (1 output with 12V pass)
-
Impedance: 75 Ω
-
Frequency Range:
-
VHF: 170 – 232 MHz
-
UHF (LTE filtered): 470 – 790 MHz
-
-
Adjustable Gain:
-
VHF: 3 – 18 dB
-
UHF: 15 – 30 dB
-
-
Operating Range:
-
VHF: 47 – 230 MHz
-
UHF: 470 – 790 MHz
-
-
Connections: F-type connectors
-
Construction: Anti-corrosion treated aluminium housing for outdoor use
💡 Key Features
-
Boosts weak TV signals for clearer, more stable reception
-

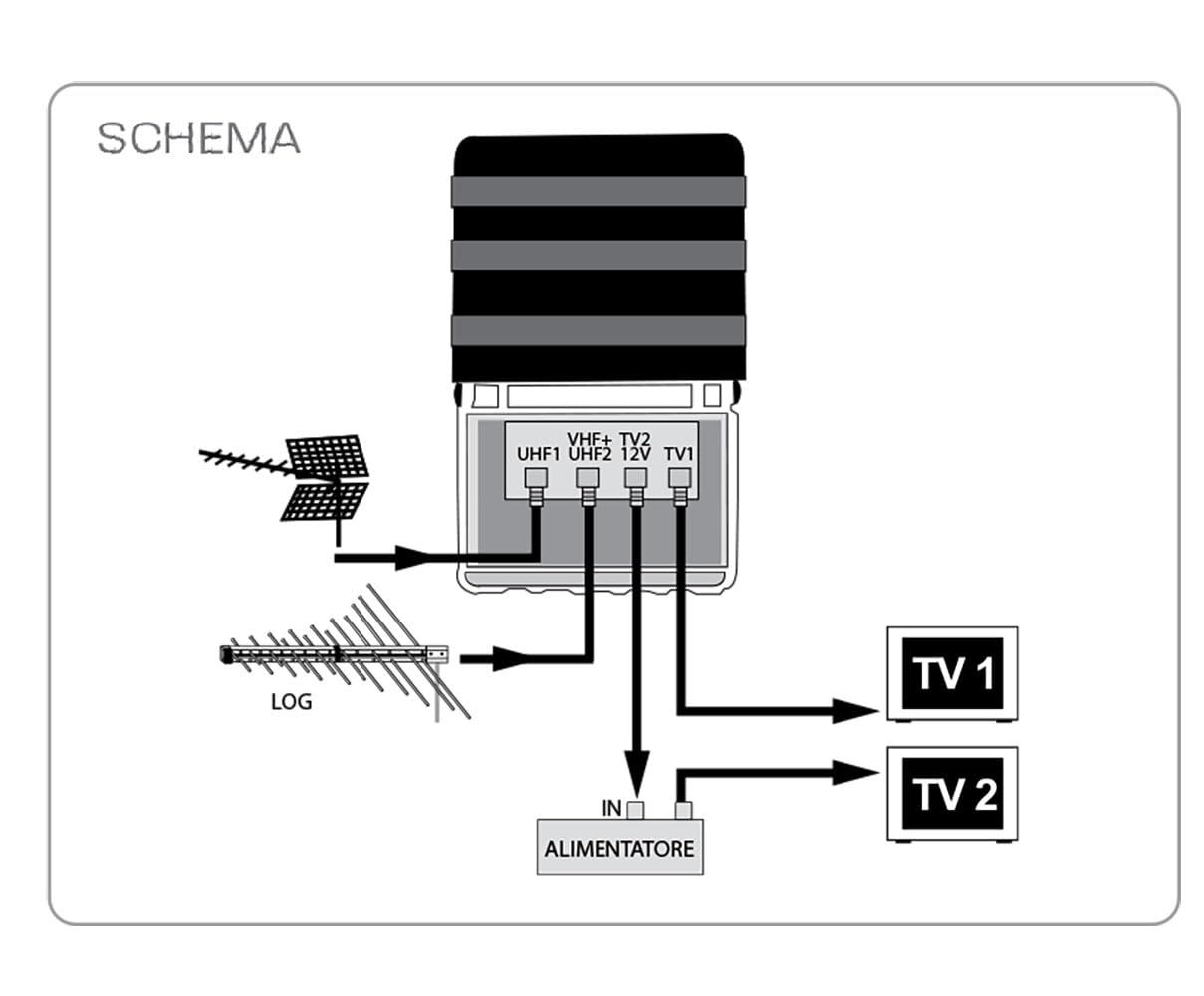

Combine two aerial signals (e.g. 2 × UHF TV aerials or 1 × UHF + 1 × FM radio aerial)
-
Suitable for Saorview + Free-to-Air systems
-
Adjustable gain for optimal signal balance
-
Weatherproof and built for poor weather conditions
-
Compact design – easily mounts to mast or wall
⚠️ Please Note:
A 12 V power supply is required but not included with the amplifier.
