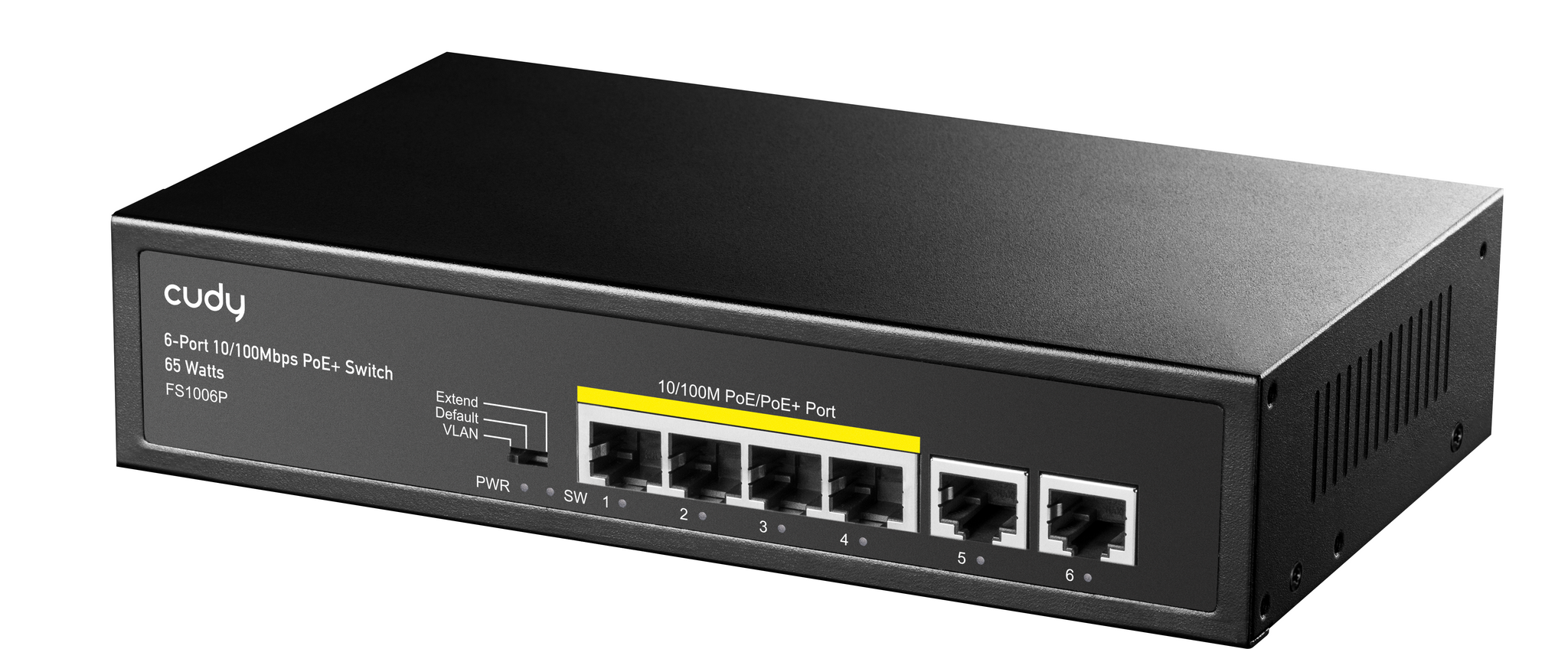

Cudy 6 Port 100M PoE+ Switch 60W
● Complies with IEEE802.3af/at Standard
● Supports PoE power up to 32W for each PoE port
● Auto detects non PoE devices and PoE devices
● Power prioritization guarantee power supply of key nodes
● CCTV/VLAN mode switch, remote power and data up to 250m
● Supports IEEE802.3 x full duplex / half duplex flow control
● Supports storage and forward for Data exchange
Specifications:
| Model | FS1006P |
| Network Protocol | IEEE802.3 / IEEE802.3u IEEE802.3x / IEEE802.3af/at |
| PoE standard | IEEE802.3af/at |
| Interface | 6*10/100Mbps RJ45 port |
| POE port output | DC 52V |
| PoE port | 1-4 |

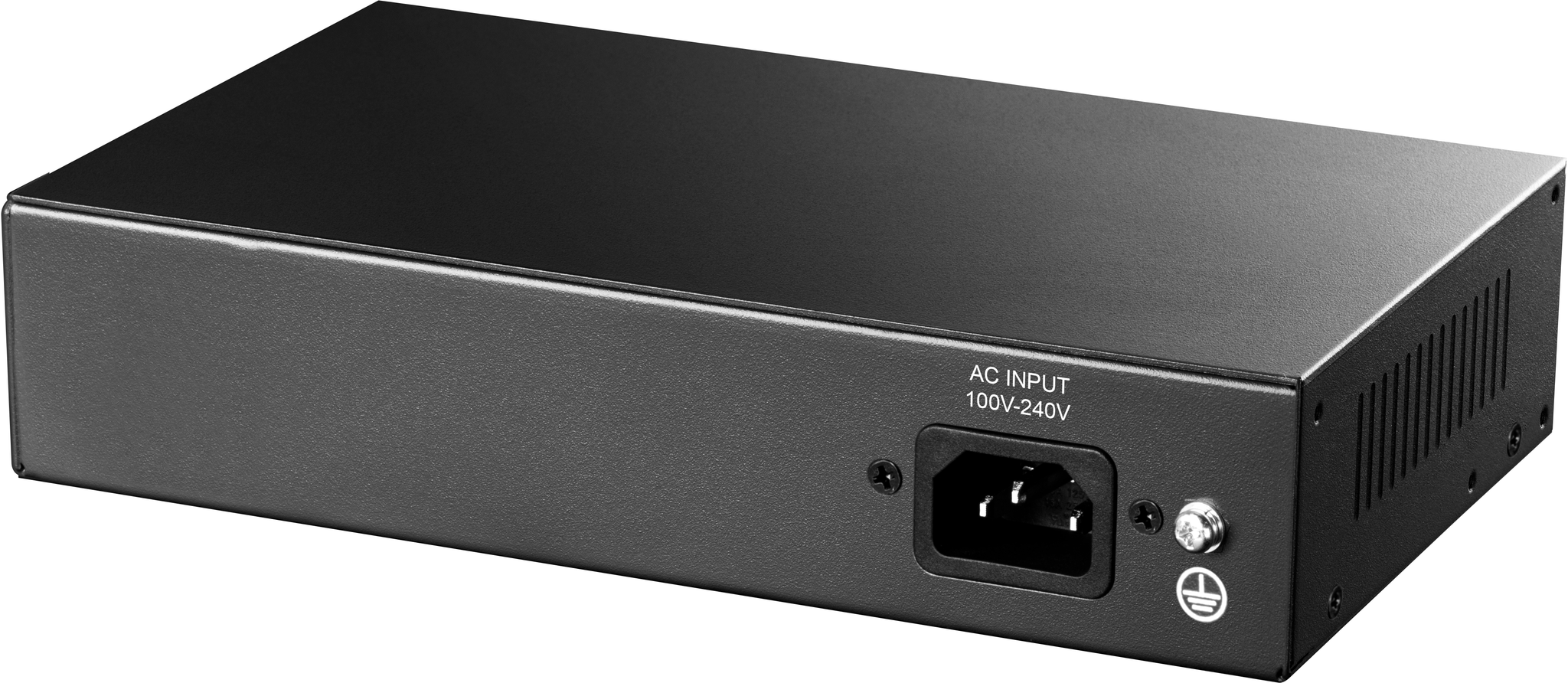

| AC Input Voltage | AC100~240V |
| Power supply | 65W |
| Power Pin | Power over spare pairs 1/2(+) , 3/6 (-) |
| PoE output-port | Max 30W |
| MAC Address | 1K MAC address table |
| Packet buffer | 448K bit |
| Transfer Mode | Store-and-forward |
| Bandwidth | 1.2Gbps |
| Fan | Fanless |
| Device Dimension | 200mm*120mm*45mm |
| Machine weight | <1kg |
| Operating Temperature | -20°C ~ 50 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
