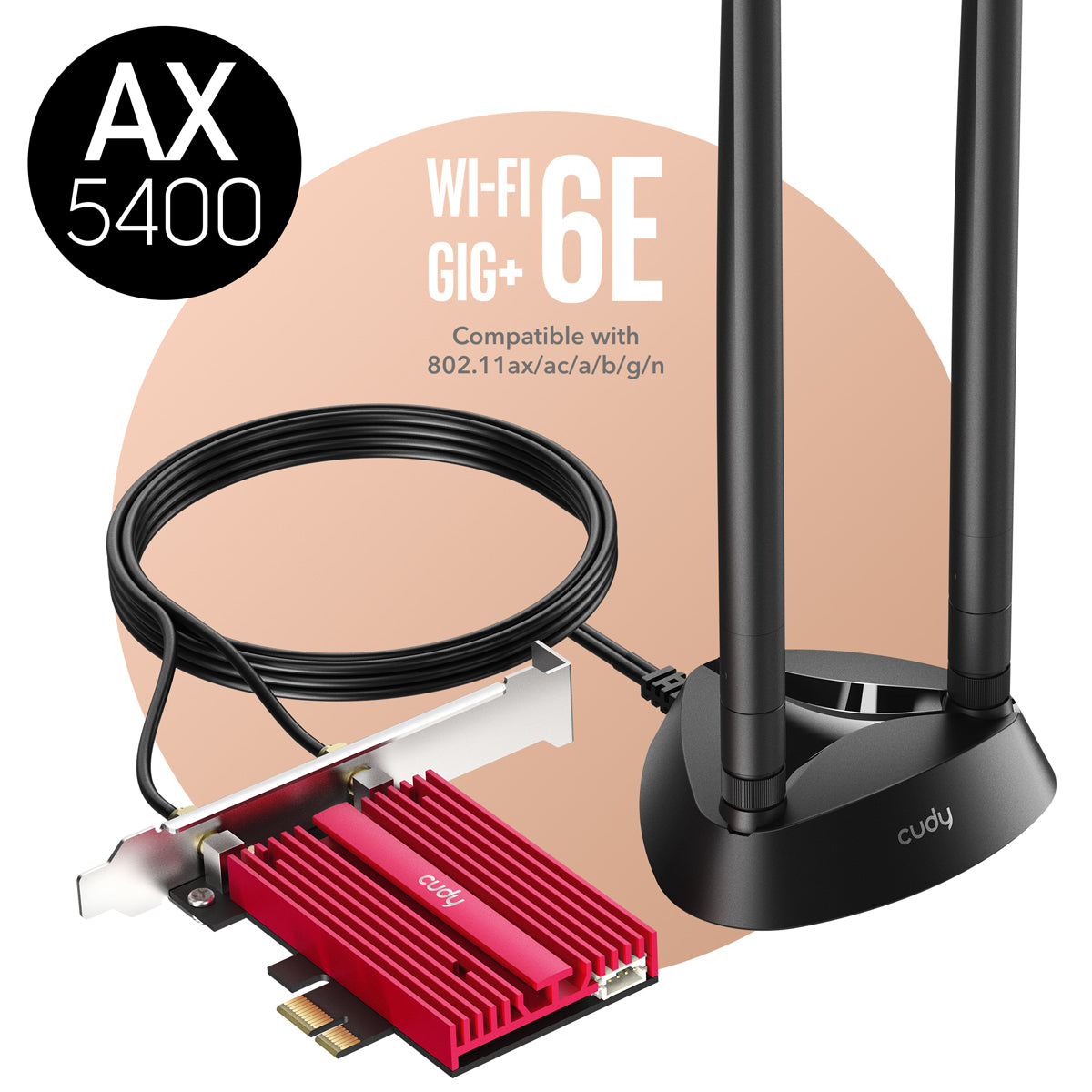

Cudy AX5400 Wi-Fi 6E Bluetooth 5.3 PCI-E Adapter

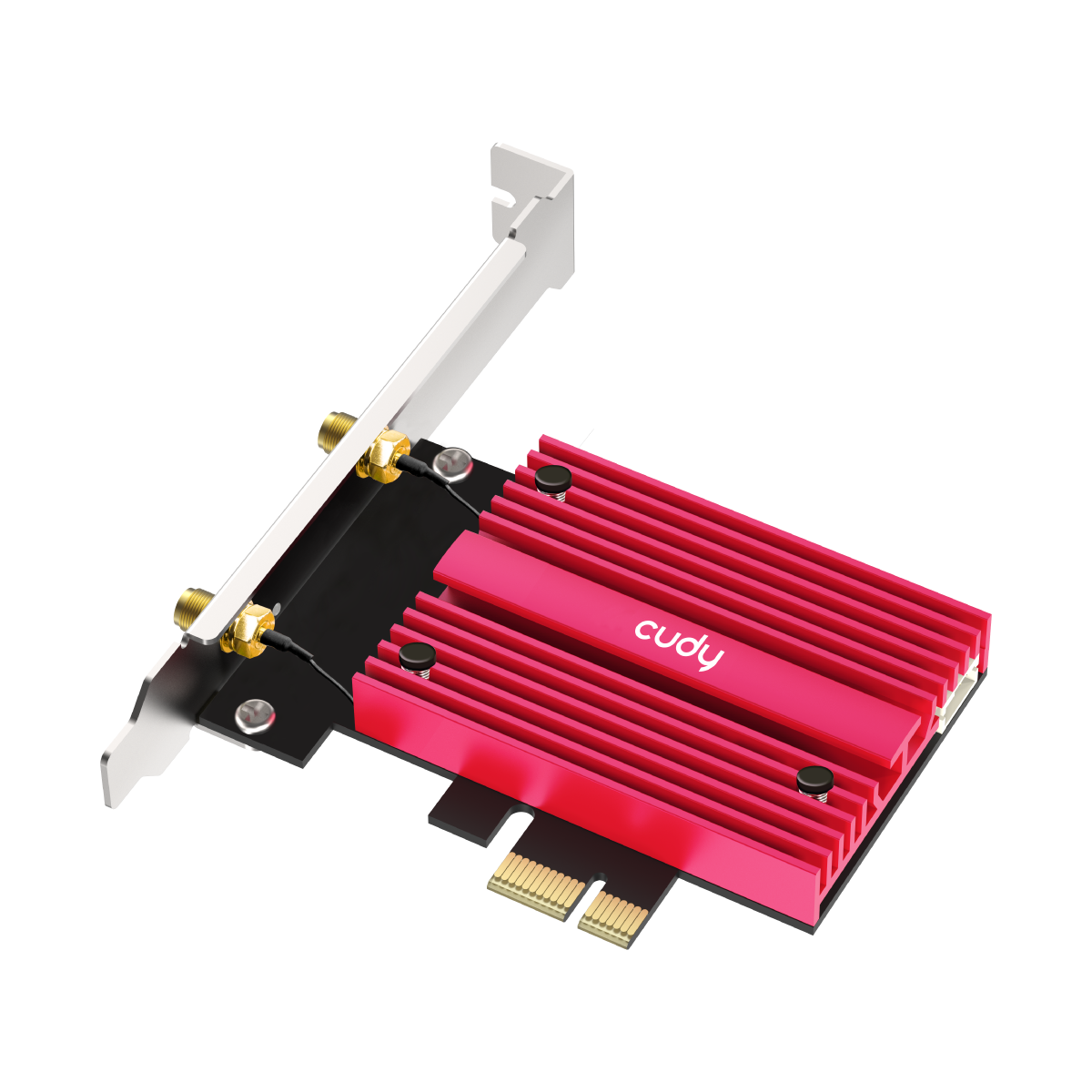

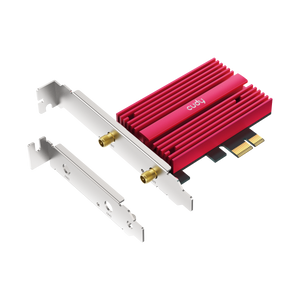

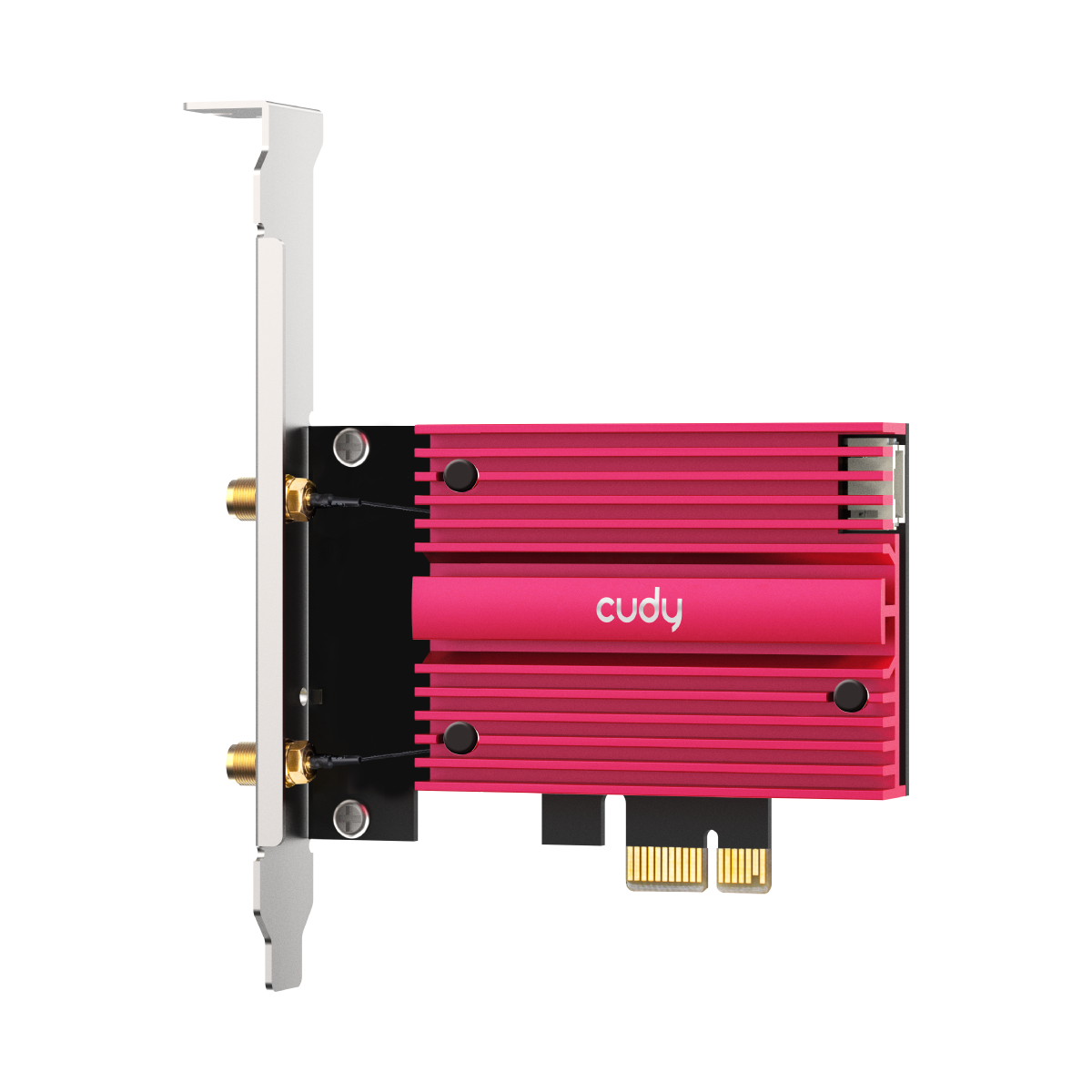

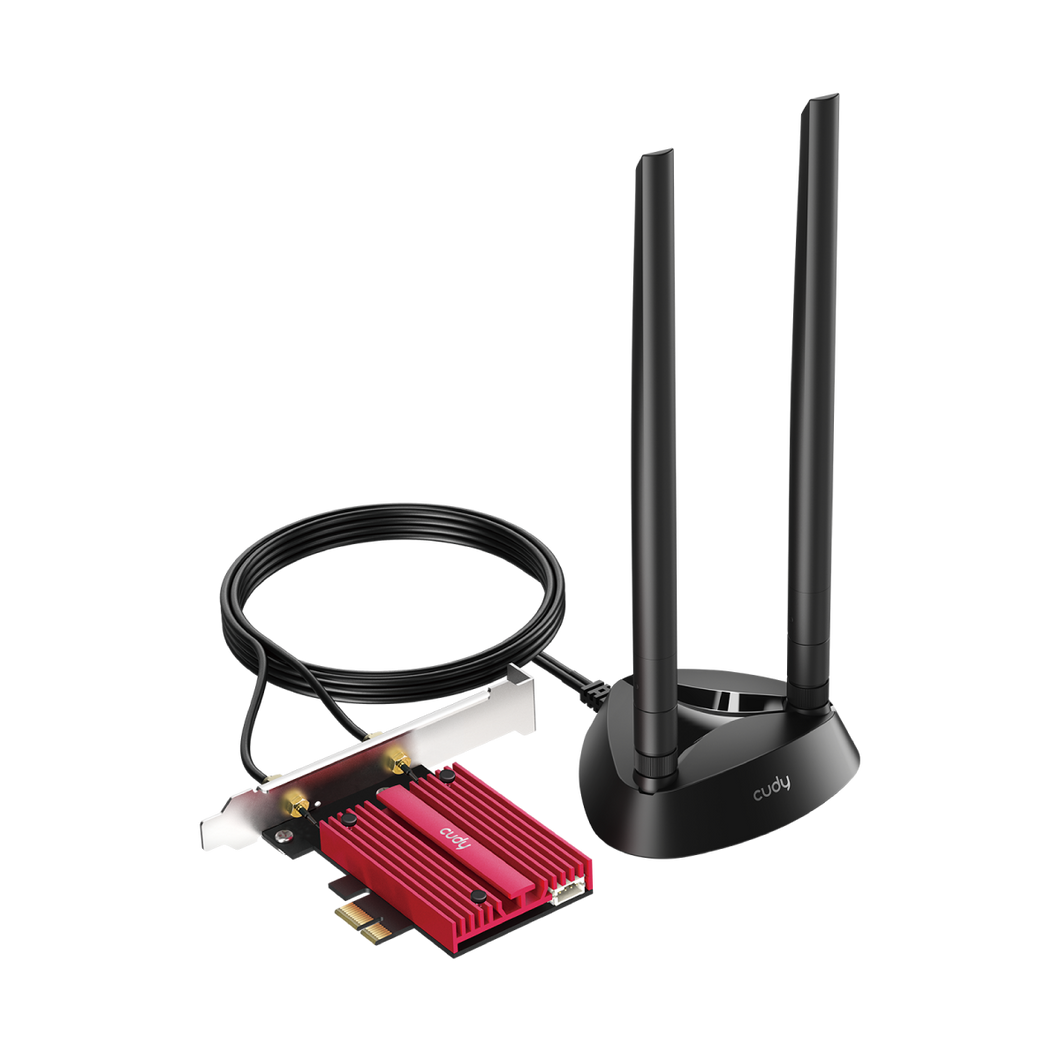

A Wi-Fi 6E and Bluetooth PCI-E adapter built on an AX210 Intel module with a heatsink and two antennas on a magnetic base. Install it to equip your Windows 11 Intel-based PC with advanced wireless connectivity.
- Tri-Band Wi-Fi 6E
- 2.4 Gbps + 2.4 Gbps + 574 Mbps WiFi 1
- Bluetooth 5.3
- Intel AX210 Module
- Works on Windows 10/11 64-Bit

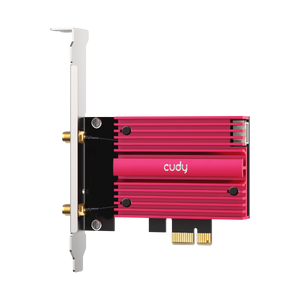

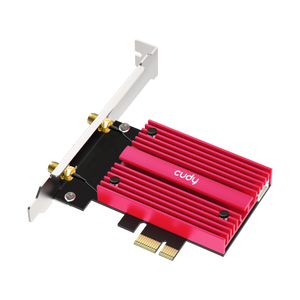

- Heatsink
| Model Version | WE4000 2.0 | |
|---|---|---|
| CPU | Chipset | Intel AX210 |

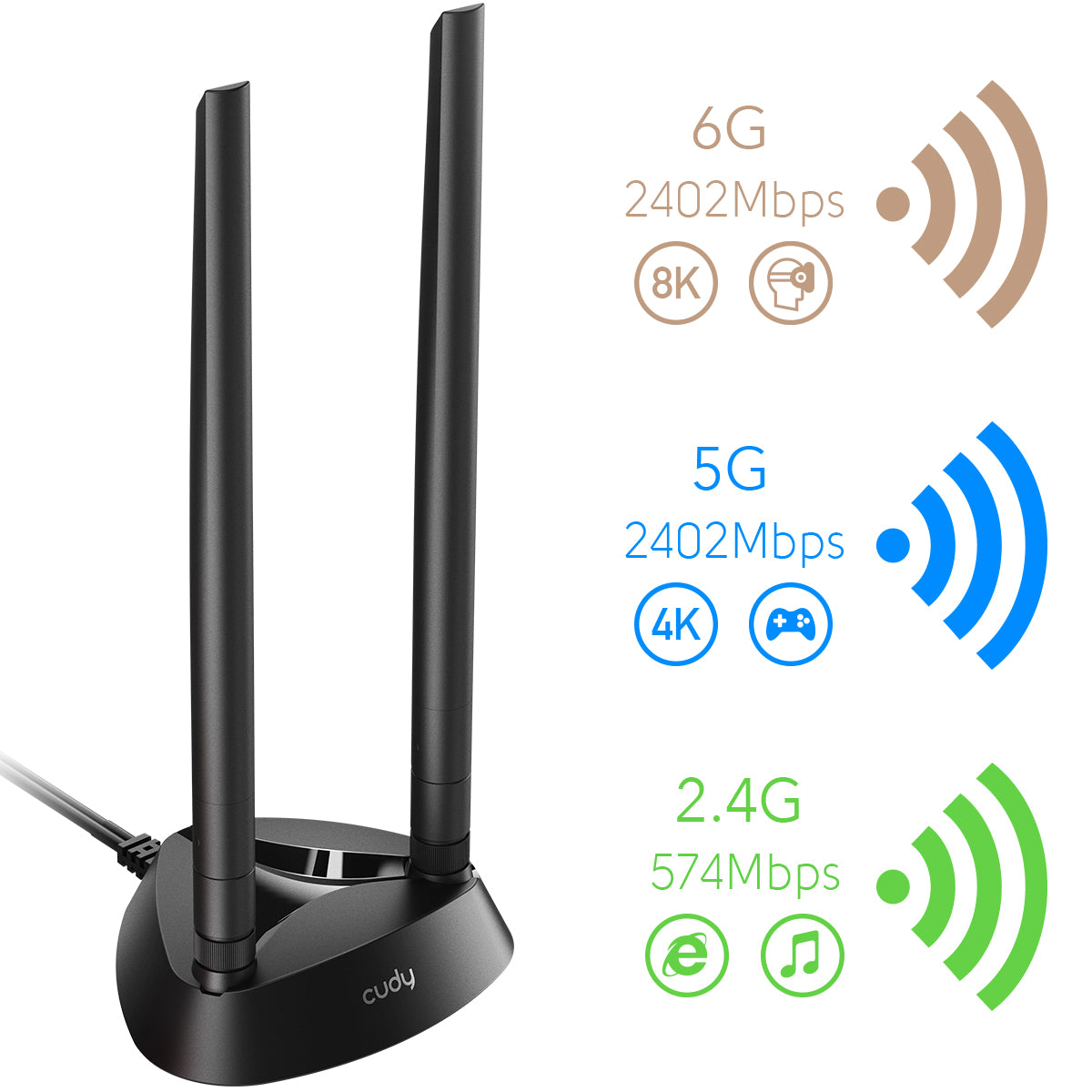

| Wireless | 6 GHz Wi-Fi Speed | 2402 Mbps |
| 5 GHz Wi-Fi Speed | 2402 Mbps | |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |

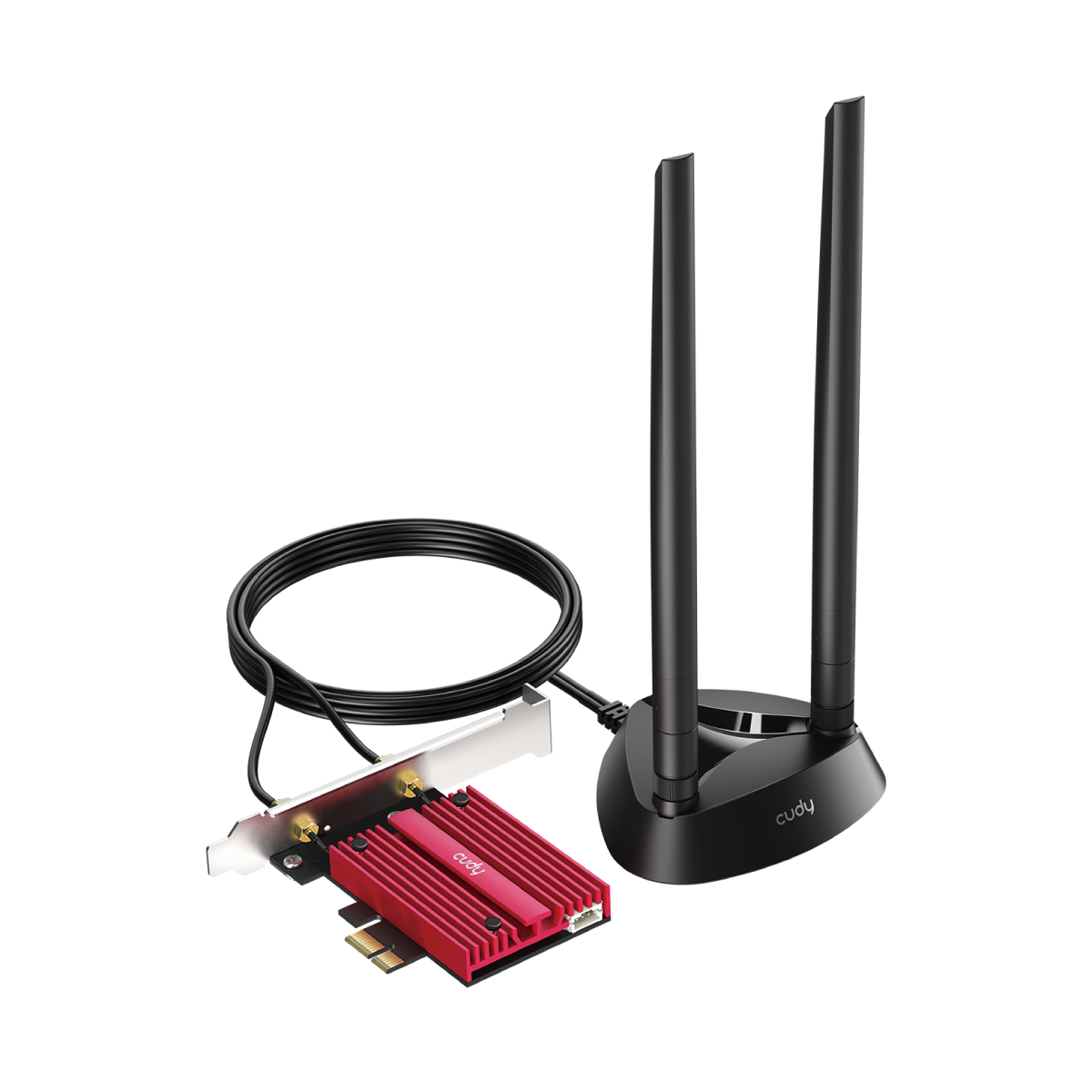

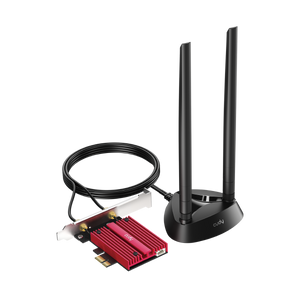

| Wi-Fi Antennas | 2× Detachable Antennas on a Magnetic Base | |
| Detachable Wi-Fi Antennas Connector | RP-SMA Female | |
| Reliability | Environment |
|
| Requirements | Hardware Requirement |
|
| Compatible OS | Windows 10/11 64-Bit | |
| Driver Installation | Manual driver installation for Windows. Driver available in the Download Center. | |
| Certifications | FCC, CE | |
| Mechanical | Dimension | Device Body: 120.8×98.4×21.5 mm 4.76×3.87×0.85 inches Magnetic Antenna Base: Φ94.5×221.5 mm Φ3.72×8.72 inches |
| Product Weight | 100 g (3.53 oz.) | |

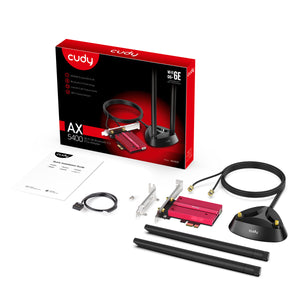

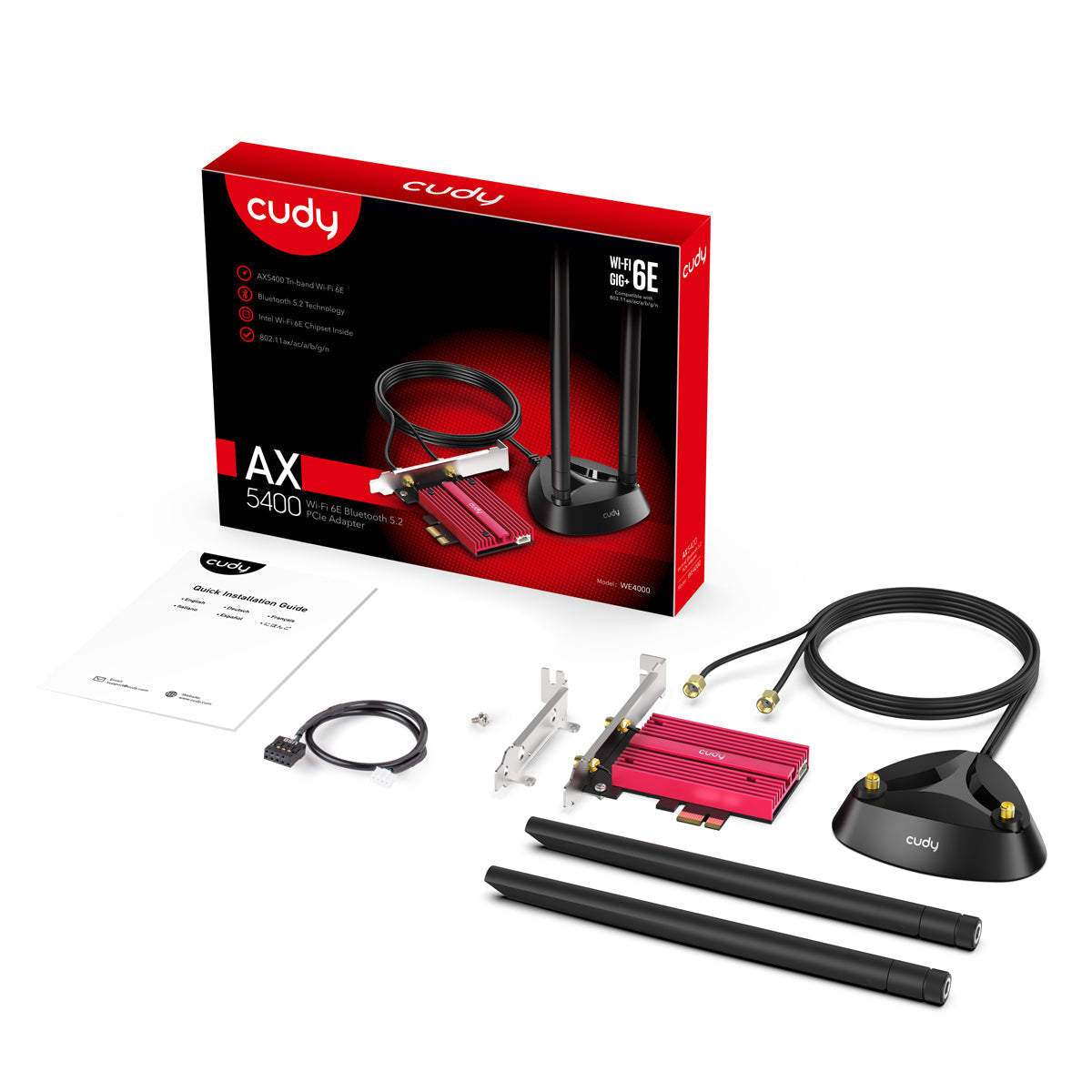

| Package Content |
|
|
| Ordering Information | Retail Package Weight | 400 g (14.11 oz.) |
| Retail Package Dimension | 237×185×35.5 mm 9.33×7.28×1.4 inches |
|
| Carton Net Weight | 12.0 kg (26.46 lbs) | |
| Carton Gross Weight | 13.2 kg (29.1 lbs) | |
| Units per Carton | 30 | |
| Carton Dimension | 59.5×38.4×25.5 cm 23.43×15.12×10.04 inches |
|
