SAC 2 Way LTE Masthead Amp 10-25dB Variable Gain Kit

S.A.C. Electronics
Click to Enlarge
S.A.C. Electronics
S.A.C. Electronics

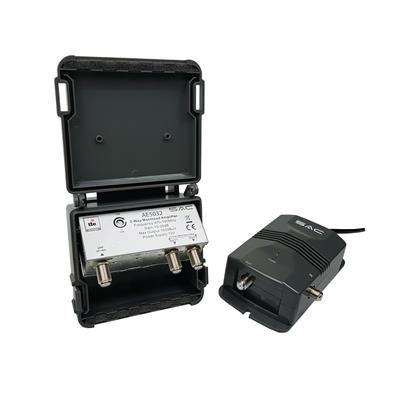

SAC 1 input 2 output variable wideband 470 ~ 790MHz masthead amplifier. 10-25dB variable gain. All ports DC powered. kit includes PSU.
Features
  • All ports DC powered
  • Fully shielded with F type connectors
  • LTE/4G Protected
  • Tight seal waterproof housing
  • SMD circuit technology design
  • High output capability with low noise
  • Easy to install and convenient to use


Specifications

  • Number of inputs: 1
  • Number of outputs: 2
  • Input frequency band: UHF
  • Input channels: 21-60
  • Frequency range: 470-790MHz
  • Gain(variable): 10-25dB
  • Noise Figure: 3.8dB
  • Max output: 102dBuV
  • Dimensions: 108x105x55mm
  • Weight: 0.205kg


PSU

  • DC output: 12V 100mA
  • Power rating: 220~240V/50Hz
  • Insertion loss: 1dB
  • Operative temperature: -10°C ~ +40°C
  • Short-circuit protection: yes
  • Dimensions: 135x70x45
  • Weight: 0.344kg


Packaging

  • Contents: 1 x Amp,1 x PSU, 1 x reusable tie-wrap, 2 x screws
  • Dimensions: 190x160x60mm
  • Weight: 0.615kg
