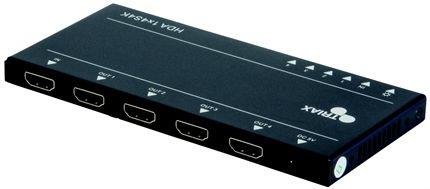

TRIAX HDA splitters are ultra-slim (11mm) and compact enabling both a professional and discreet installation.
Designed with the installer in mind, cable management is optimised through all HDMI cables, both in and out of the splitter from the same side, while the unit can also be wall mounted via supplied brackets.
The feature packed range is HDCP 1.4 complaint, provides transmission of 1080p, 3D, 4Kx2K@30Hz and a high bandwidth up to 10.2bps. LED indicators allow instant recognition when a HDMI source is input or when a HDMI connection is made with a sink device. SMART EDID management automatically adopts the EDID of the first detected display. The splitter can also be hot plugged without loss of picture and cascaded up to 3 times with HDMI equalisation.
- Optimised cable management- all HDMI cables enter and leave the product from the same side
- Transmission of 1080p, 3D and 4Kx2K@30Hz
- LED indication
- Input Source HDMI recognition LED indicator- HDCP present LED indicator- Solid LED when present, flashing when no HDCP
- Output LED indicators- show a HDMI connection to Sink device
- Hot plug without picture loss
- HDCP 1.4 compliant
- High Bandwidth 10.2Gbps
- Low power consumption
- Firmware upgrade- online support
- Auto EDID via output port one
- SMART EDID management, automatically adopts the EDID of the first detected display
- Multi region Power supply
- Cascadable up to 3 times
